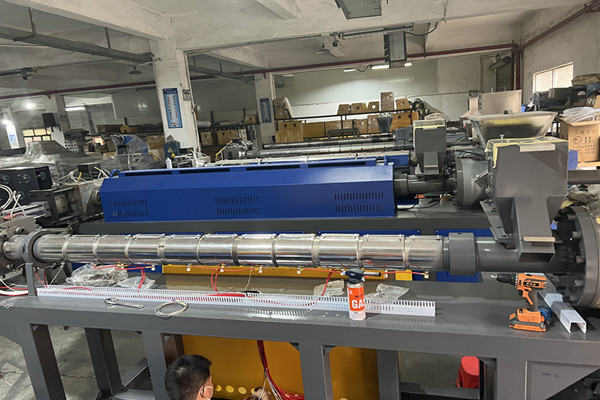

16mm PET strapping machine automatic PET strap making mackine with 100% PET bottle flake material production
PRODUCT DESCRIPTION OF PET STRAP MAKING MACHINE:
PET strap making machine/ PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
PET plastic steel belt production line features:
Extrusion process-----PET belt making machine uses a special screw for extruder, which is evenly extruded by heating and melting.
Cooling and solidification----The extruded PET belt embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.
Stretching and orientation----PET belt making machines usually include stretching and orientation parts to improve the tensile strength, flexibility and overall performance of the PET belt. This process aligns the molecules in the PET material to enhance its mechanical properties.
PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
PRODUCT DESCRIPTION
|
Model
|
PET-2
|
PET-3
|
PET-4
|
PET-6
|
PET-8
|
|
Raw materials
|
Bottle flakes/crushed materials
|
|
Number of tapes
|
2
|
3
|
4
|
6
|
8
|
|
Width (mm)
|
9-32
|
|
Thickness (mm)
|
0.4-1.2
|
|
Maximum line speed(m/min)
|
≧150
|
≧150
|
≧150
|
≧150
|
≧150
|
|
Screw Model
|
90
|
100
|
125
|
150
|
180
|
|
Reducer model
|
200
|
250
|
280
|
315
|
350
|
|
Dehumidifier
|
1000
|
1000
|
2000
|
3000
|
3500
|
|
Metering Pumps
|
100CC
|
|
Production capacity /24 H
|
5-6T
|
7-8T
|
10-12T
|
12-15T
|
18-20T
|

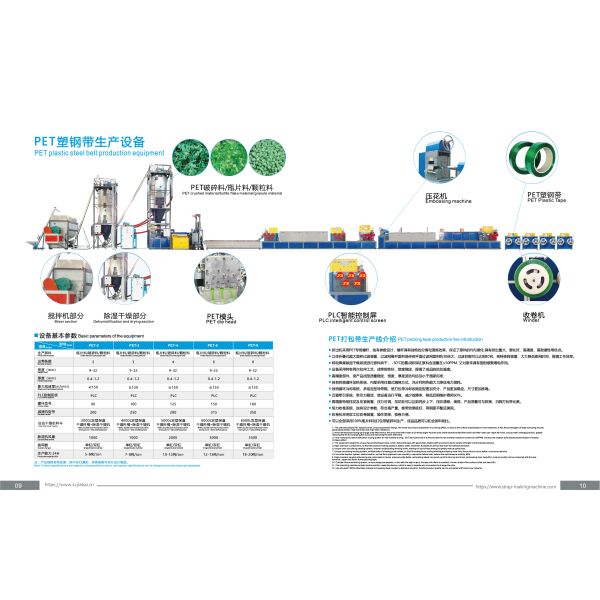

PROCESS FLOW
1. Extrusion process--------PET strap making machine uses a special screw for extruder, which is evenly extruded by heating and melting.
2. Cooling and solidification------- The extruded PET tape embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.
3. Stretching and orientation------- PET tape making machines usually include stretching and orientation sections to improve the tensile strength, flexibility and overall performance of the PET tape. This process aligns the molecules in the PET material to enhance its mechanical properties.
4. Embossed--------PET strap making machines may have an embossing section that creates a textured or patterned surface on the PET strap to improve grip and aesthetics.
5.Winding and Cutting------After producing the PET strap, the machine typically includes a winding and cutting mechanism to roll the strap into coils of the desired length for packaging and distribution.
6.Adjustable Parameters------ PET strap making machines typically offer PLC adjustable parameters such as strap width, thickness, color, and tension to customize the strap to specific requirements.
KEY TECHNOLOGIES:
1. The critical technologies lie in: PET molecular chain orientation stretching and precise temperature control systems. During the stretching phase, multiple sets of traction rollers work in concert to induce directional stretching of the PET melt within a specific temperature range. This process rearranges the molecular chains into an ordered structure, significantly enhancing the product's longitudinal tensile strength and elongation at break.
2. The PET plastic steel strapping production line employs a closed-loop temperature control system. Utilising thermal energy to reduce electrical power consumption, it employs PLC technology for real-time monitoring and precise regulation of temperatures at critical points including the extruder barrel, die head, stretching oven, and setting water tank. This ensures consistent thickness and width tolerance ranges across every production batch.
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
COMPANY ADVANTATES:
The equipment is equipped with a PLC human-machine interface, which is easy to operate and debug. The equipment has an exclusive parameter memory system, which can store data for each specification after production, and can directly adjust the parameters for the next production.
The embossing wheel is processed by equipment imported from Germany, which is durable
The equipment is equipped with a correction device, and the winding is neat and knife-cut.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
