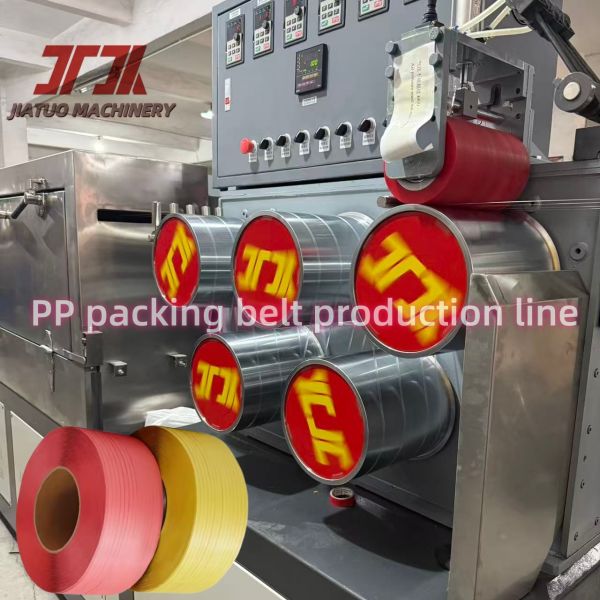

Fully Automatic 230-260kg/h Plastic PP Four Straps Output Extrusion Production Line With Non-stop Screen Changer
This professional PP plastic strapping production line produces straps with customizable width (5–19mm) and thickness (0.3–1.2mm). It works with both virgin PP and recycled PP materials; even 100% recycled PP yields high-quality straps, meeting eco-friendly requirements.
As a manufacturer with 30 years of experience in PP/PET strapping lines, we welcome your inquiries.
Technical specification of JIATUO PP strap making machine
| Type |
JTPP-90 |
JTPP-100 |
JTPP-110 |
JTPP-125 |
JTPP-135 |
JTPP-90/65 |
JTPP110/75 |
| Strap of number |
2 |
3 |
4 |
6 |
8 |
2 |
4 |
| Sandwich belt |
Sandwich belt |
| width |
5-19mm |
5-19mm |
5-19mm |
9-19mm |
9-19mm |
9-19mm |
9-19mm |
| Thickness |
0.4-1.2mm |
| Reducer mode |
200 |
200 |
225 |
250 |
280 |
200/173 |
225/173 |
| Screen changer |
Automatic / Manual |
| Production capacity |
80-120kg/H |
180-200kg/H |
220-250kg/H |
350-370kg/H |
460-500kg/H |
80-120kg/H |
180-200kg/H |
| Screw type |
Single screw |
Double screw |
The part of JIATUO PP strap making machine
1. Efficient PET dehumidification drying system
2. Single screw extruder with automatic feeding system and material barrel
3. Die head (Mold)
4. Cooling water tank
5. Five-roller preheating machine
6. Hot air stretching oven
7. Stretcher
FAQ
Q1:If you will send engineer coming to our factory to install and test the machines?
A1:Yes. Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q2:If you have CE,SGS,ISO certificate?
A2:Yes, except these, if you also need other certificates,we also can help to apply.
Q3:If we buy your machines, can you offer us wear-out spare pats?
A3:Yes. We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q4:What is the voltage?
A4:380V 50hz 3 phase or any other voltage according to client's requirement.
