PP Strapping Machine 5–19mm PP Packing Straps for Automatic Strapping Machines

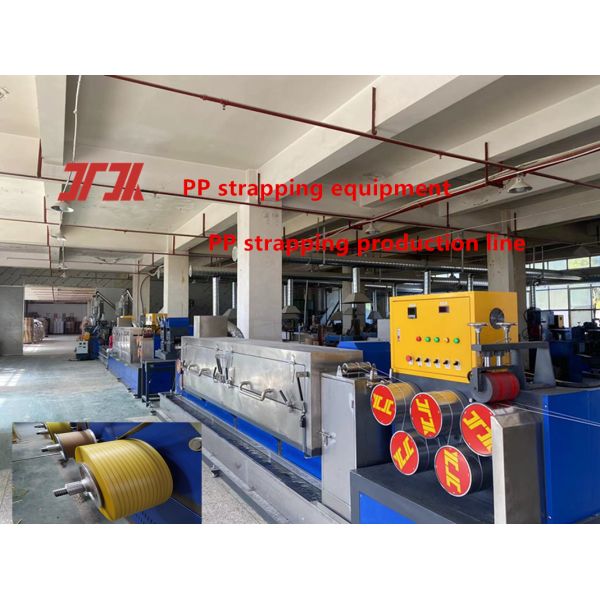

DESCRIPTION OF PP STRAPPING PRODUCTION LINE:
Main features of PP strapping production line
High efficiency----high degree of automation, PLC control system, fast production speed, line speed 200-300 m/min.
High quality----high speed rotation, high output, low power consumption, the finished PP straps produced have good toughness and bending resistance, which meet the requirements of fully automatic strapping machines.
Environmental protection----Use PP new materials or recyclable materials for production, non-toxic, odorless and degradable.
Multi-function----Can produce different specifications of width, thickness, length and weight. Width: 5-19mm, thickness: 0.3-1.2mm.
PP strapping production line process flow:
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding
FeaturesProduct Description
| Name |
Parameters |
| Name |
PP Strap Making Machine |
| Warranty |
1 Year |
| Screw diameter (mm) |
100mm |
| Strap Color |
Red/Green/Black/Yellow |
| Strap Width |
5-19mm |
| Key Selling Points |
Lead To Germany Japan Technology |
| Power Consumption |
100KW |
| Motor |
GUGAO |
Applications of packing belt production equipment:
Working process of PP strapping equipment:
Raw material preparation----Add PP granules into the extruder hopper.
Extrusion molding----PP granules are melted in the extruder and extruded through the mold.
Cooling and shaping----The extruded strapping tape enters the cooling water tank for cooling and shaping.
Traction and stretching---- The traction machine pulls the strapping belt, and the stretching machine performs stretching treatment.
Embossed treatment---- The embossing machine embosses the surface of the strapping tape.
Shaping oven---- Heat and shape the PP belt again to achieve consistent specifications.
Reeling and packaging----The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.
The PP strapping production line is a high-end intelligent extrusion equipment that can produce PP straps with a width of 5-19mm and a thickness of 0.3-1.2mm.
Features of sandwich PP straps:
1. Sandwich PP straps are produced by twin-screw extrusion, with the material fed into the extrusion die.
2. It can produce double-layer sandwich PP strapping.
3. The raw material for sandwich PP strapping is usually stone powder masterbatch, saving costs.
4. Sandwich PP strapping equipment can produce: sandwich PP strapping and all-plastic PP strapping, offering multiple options.
