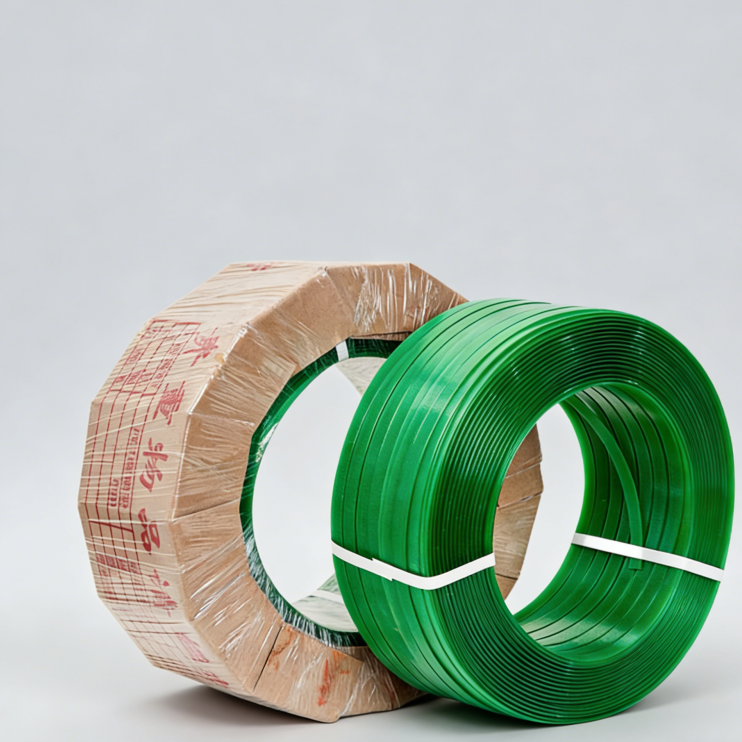

This PET Strap Making Machine PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability
- Product Name: PET Strap Making Machine
- Strap Color: White/Black/Blue/Green Etc.
- Strap Width: 9-32mm
- Raw material: PET bottle flake material&100% broken material
- Strap Core Material: Paper/Plastic/Aluminum
- Features: Double cylinder/Single cylinder, 100% recycled bottle flakes material
Technical Parameters:
|
Model
|
Width
|
Thickness
|
Pull
|
Gross weight
|
Net weight
|
Paper core diameter
|
Length
|
Other models |
| PET-0950 |
9.0mm |
0.50mm |
>150kg |
20kg |
18.5kg |
200/406mm |
3400m |
PET-1610 |
| PET-1050 |
10.0mm |
0.50mm |
>180kg |
20kg |
18.5kg |
200/406mm |
2900m |
PET-1970 |
| PET-1250 |
12.0mm |
0.50mm |
>210kg |
20kg |
18.5kg |
200/406mm |
2400m |
PET-1910 |
| PET-1260 |
12.0mm |
0.60mm |
>220kg |
20kg |
18.5kg |
200/406mm |
2000m |
PET-1912 |
| PET-1360 |
13.0mm |
0.60mm |
>250kg |
20kg |
18.5kg |
200/406mm |
1850m |
PET-2512 |
| PET-1660 |
16.0mm |
0.60mm |
>320kg |
20kg |
18.5kg |
200/406mm |
1500m |
PET-3512 |
| PET-1670 |
16.0mm |
0.70mm |
>370kg |
20kg |
18.5kg |
200/406mm |
1300m |
|
| PET-1680 |
16.0mm |
0.80mm |
>450kg |
20kg |
18.5kg |
200/406mm |
1200m |
|
PET plastic strapping (also known as PET strapping) production equipment is specialized for producing high-strength, environmentally friendly PET plastic strapping. Its key features include:
1. Efficient and Automated Production
Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.
Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.
Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.
PET strapping performance characteristics (determined by the production line): PET strapping manufactured on this production line possesses the following superior properties:
High strength---- Tensile strength can reach more than half that of steel strapping, far exceeding PP/plastic strapping.
High toughness------ Excellent impact resistance; not easily broken under sudden force.
Resistant to deformation: Low elongation, maintains tension for a long time, and the packaged items will not loosen for an extended period after packaging.
Good safety------ No steel spikes, does not injure hands, safe for bundling and opening operations.
Aesthetically pleasing and corrosion-resistant----- Smooth surface, clear printing, rust-free, and resistant to high temperatures, cold temperatures, and corrosion from various chemicals.
Recyclable----- Used strapping can be 100% recycled and reused, meeting environmental protection requirements.
FAQ:
Q1: What is the Brand Name of the PET Strap Making Machine?
A1: The Brand Name of the PET Strap Making Machine is JIATUO CHINA.
Q2: What is the Model Number of the PET Strap Making Machine?
A2: The Model Number of the PET Strap Making Machine is JTPET.
Q3: Where is the PET Strap Making Machine made?
A3: The PET Strap Making Machine is made in China.
Q4: What is the Certification for the PET Strap Making Machine?
A4: The Certification for the PET Strap Making Machine is IS CEO.
Q5: What is the Minimum Order Quantity for the PET Strap Making Machine?
A5: The Minimum Order Quantity for the PET Strap Making Machine is 1 SET.
